Overview
Specifications
Size
Hardware Platform
CPU Chipset
Amlogic S905X4
DMIPS
24k DMIPS
GPU
ARM Mali-G31 MP2
RAM
4GB LPDDR4
Flash
eMMC 32GB
Network
Wi-Fi
802.11 b/g/n/ac 2.4G/5G Wi-Fi 5
Bluetooth
Bluetooth 5.0
General
Color
Black/White
Weight
2500g
Power Source
DC 20V
Dimensions
600mm (W) x 135mm (D) x 78mm (H)
Power Supply
Input Voltage
AC 100V - 240V
DC output
20V 2.5A
Power Consumption
50W
Power Line Length
1.2 Meter
Audio
Audio Channels
Physical Channels 5.1
Total Power Output
85W
Speaker Configuration
Center/Left surround/Right surround: 10W x 3 Left/Right: 15W x 2 Woofer: 25W
Frequency Response
Center/Left surround/Right surround: 20Hz ～ 20 KHz Left/Right: 20Hz ～ 20 KHz Woofer: 20Hz ～ 10 KHz Deviation -10db from average S.P.L
Sound Enhancement Technologies
Supports
Sound Enhancement Technologies
Supports
Audio Formats Supported
Supports MP3, AAC, WMA, RM, FLAC, 5.1 down-mixing
Connectivity
Wireless Connectivity
Wi-Fi/Bluetooth/Zigbee
Bluetooth Version
BT 5.2
Compatibility
TV Compatibility
All TV brands
Mobile Device Compatibility
Phone, Pad
Voice Assistant Compatibility
Google Assistant
Advanced connectivity options
Left and Right Rear enabled surround speakers
Speaker Configuration
15W
Dimensions
80mm (W) x 120mm (D) x 180mm (H)
Color
Black / White
Power Source
AC 110V-240V
Wireless Connectivity
Wi-Fi
Connection method
5.8G Self-developed agreement
Advanced connectivity options
Subwoofer (Optional)
Max Input Power & Frequency Range
40W (RMS), 55Hz ~ 160Hz
Dimensions
40W (RMS):162mm (W) x 162mm (D) x 268mm (H)
Power Source
Input: 110V-240V AC Output: DC20V, 2.5A, 50W

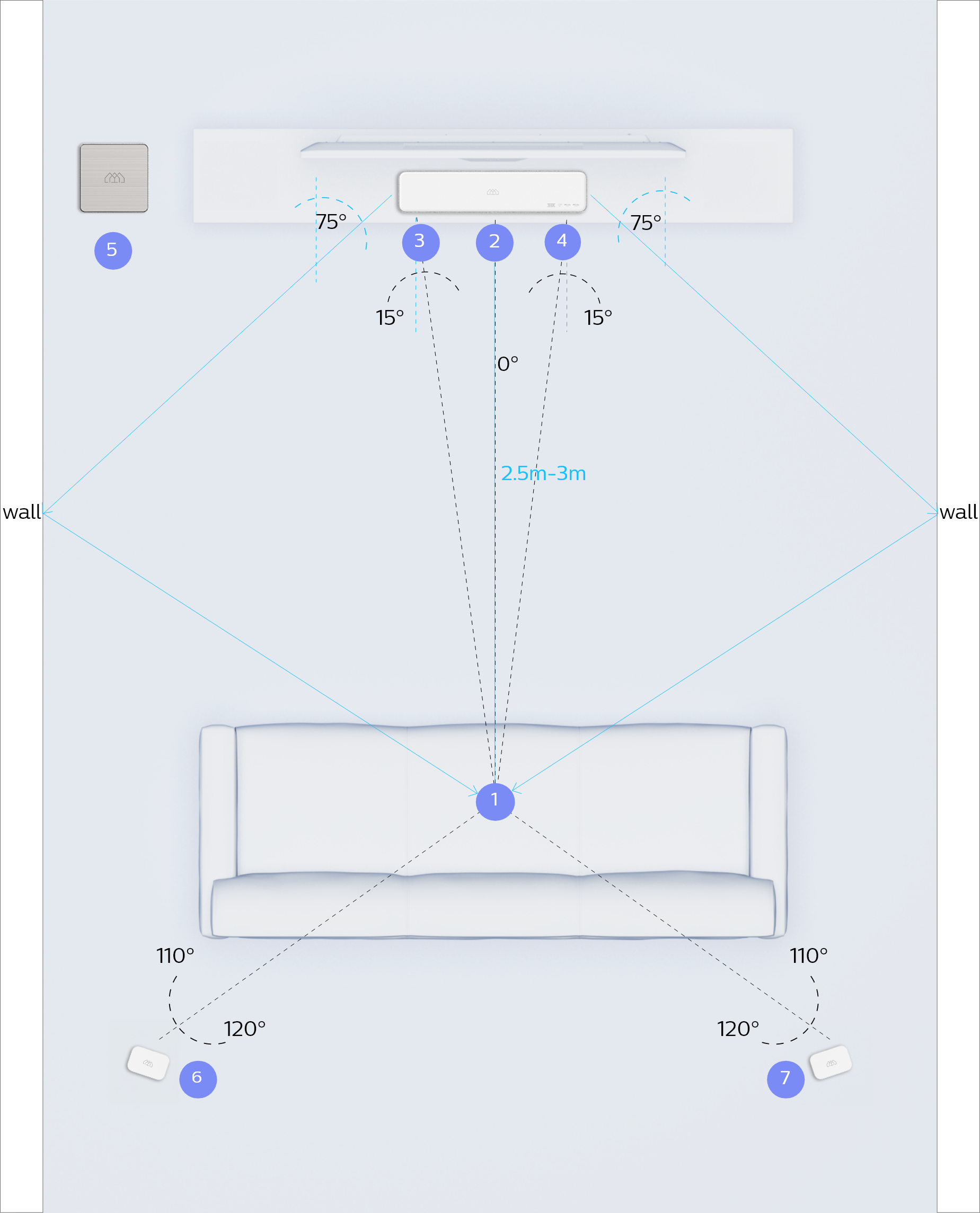

How to set up your 5.1 system
How to set up your 5.1 system
To create an optimal sound system enabled with Dolby Atmos®, first familiarize yourself with the role and position of each speaker. Then choose a central seating point and angle your speakers at it, keeping them at your ear height when you are seated, unless noted otherwise.
1
Seating position
2
Center speaker
3
Left speaker
4
Right speaker
5
Subwoofer
6
Left surround speaker
7
Right surround speaker
